SEWAGE PUMPS

Sewage Pumps are specialized pumps used to move wastewater and sewage from one location to another, typically from lower to higher elevations. They are essential components in residential, commercial, industrial, and municipal sewage systems.

Types of Sewage Pumps:

1. Submersible Sewage Pumps
   • Installed underwater in the sewage pit
   • Ideal for handling solid waste
   • Quiet operation and low maintenance
2. Effluent Pumps
   • Used to pump treated water (effluent) from septic tanks
   • Can handle smaller solids
   • Often used in residential systems
3. Grinder Pumps
   • Equipped with cutting blades
   • Grind solid waste into slurry before pumping
   • Suitable for systems with long pipe runs or small diameter pipes
4. Centrifugal Pumps
   • Use an impeller to move water
   • Ideal for larger volumes with lower solid content
5. Reciprocating or Diaphragm Pumps
   • Used for high-viscosity fluids and precise flow control
   • Less common in sewage systems

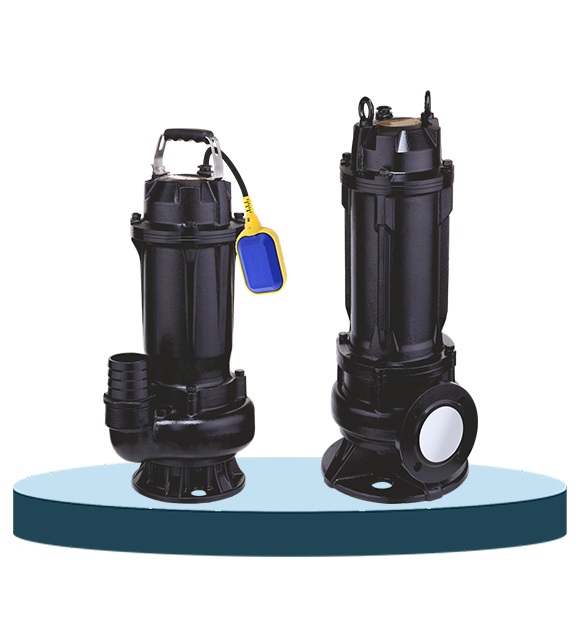

Submersible Sewage Pump

A submersible sewage pump is a type of sewage pump that is designed to operate while completely submerged in the wastewater or sewage it is pumping. It is commonly installed at the bottom of a sewage pit, sump, or tank and is used to lift sewage and wastewater to higher levels, especially when gravity flow is not possible.

Key Features to Consider:

• Capacity (Flow Rate)
• Head (Lifting Height)
• Solids Handling Size
• Motor Power
• Construction Material (Cast iron, stainless steel, etc.)
• Automation (Float switches, control panels)

Applications :

• Sewage treatment plants (STP)
• Residential and commercial buildings
• Municipal drainage systems
• Hospitals, hotels, and large complexes
• Industrial wastewater handling

Where Sewage Pumps Are Used in an STP?

1. Inlet/Raw Sewage Pumping Station
   • Pumps incoming raw sewage from collection tanks to primary treatment units.
   • Often uses submersible sewage pumps or non-clog pumps.
2. Sludge Handling
   • Pumps thick sludge from sedimentation tanks to sludge digesters or dewatering units.
   • Requires high-torque pumps that can handle thick, solid-heavy materials.
3. Recirculation
   • Pumps treated water back for reuse or for additional treatment steps.
   • Often uses effluent or centrifugal pumps.
4. Final Discharge
   • Pumps treated water to disposal points or reuse systems.
   • May involve clear water pumps or treated effluent pumps.

Reach us if you want help in selecting the right capacity or model for your needs!
